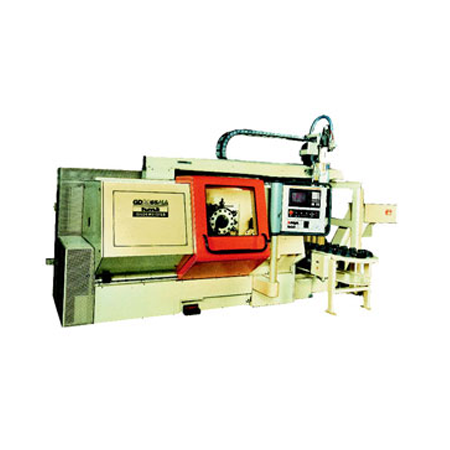

CNC Bar Turning Center GDM 42/65/90

Salient Features :
» Range of CNC Bar Turning Centers to meet accuracy, economy and flexibility in machining of turned parts in small to medium batches.
» Automatic turning of components with 2/4 axes control.
» Bar/chuck working.
» Cross/off center drilling and milling.
» C-Axis control.
» 12-Station tool turret with 6 driven tools.
» High rapid traverses and short indexing time.
» Complete machining of components.



Specifications :

GDM42
2/4 Axis		 GDM 65
2/4 Axis		 GDM 90
2/4 Axis
Turning dia. mm 185 185 185
Chuck size mm 160 200 250
Bar dia. mm 42 65 90
Spindle speed rpm 71-6300 25-4000 25-4000
Rapid traverse mm/min 15,000 15,000 15,000
Spindle power (DC drive) kW 22 / 29 22 / 29 22 / 29
Control System Siemens / Fanuc
