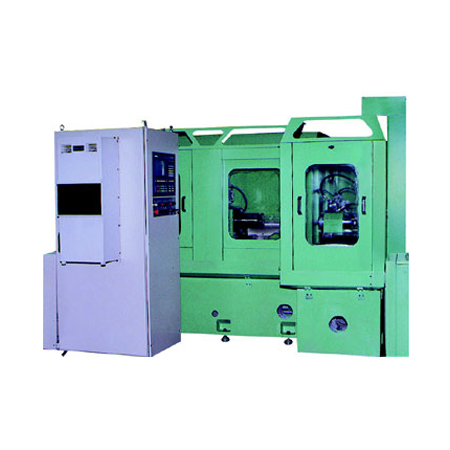

CNC Internal & Face Grinding Machine GIN 16T / 2A

Salient Features :

»	Ideally suited for components requiring both internal and face grinding operations in single chucking.
»	Both spindles can also perform operations such as straight, tapered and profile grinding.
»	Oscillation of work head slide (Z) instead of wheel head for internal grinding.
»	Two internal grinding heads mounted on a slide (X) at right angle to the work head slide
»	Wheel peripheral velocity up to 45 m/sec with high frequency internal grinding spindles.
»	High grade alloy steel work spindle mounted on precision preloaded antifriction bearings for optimum rigidity and running accuracy of less than one micron.
»	Wide range of work clamping devices, either manual or power operated to suit customer components.

Specifications :

Min. / Max. bore grinding capacity	mm	6 / 160
Max. bore grinding depth	mm	150
Max. length of job	mm	400
Max. swing over table	mm	450
Work spindle nose		A2"-5
Work head swivel	deg	150
Max. feed rate - X / Z axes	m/min	5 / 6
Min. programmable increment of slides on diameter	mm	0.0005
Roundness on test piece	Micron	< 1
Control system		Siemens/Fanuc
