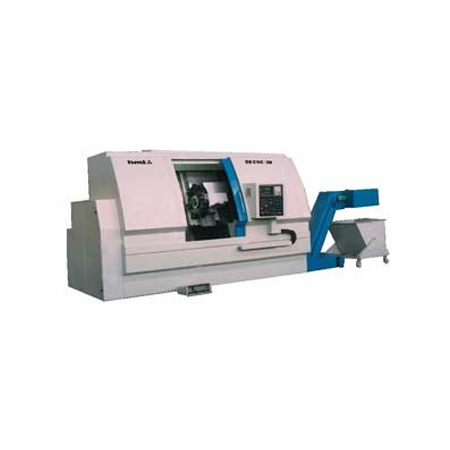

CNC Slant Bed Turning Center SBCNC 30

Designed for high speed turning of components, with high rigidity and minimum torsional deflection.
» Separate pairs of hardened and ground rectangular guideways for saddle and tailstock.
» Main spindle supported on super precision double row cylindrical roller and angular contact bearings.
» Slant 70° bed designed for higher rigidity and minimum linear and torsional deflection ensuring higher positioning accuracies.

Specifications :

Swing over bed mm 660
Maximum turning dia. mm 400
Maximum turning length mm 1000/1500/2000
Bar passage/Spindle bore mm 100
Spindle power (100%) kW 20
Speed range rpm 22-2750
Rapid traverse m/min 12
Tailstock quill travel mm 100
Control system Siemens / Fanuc
