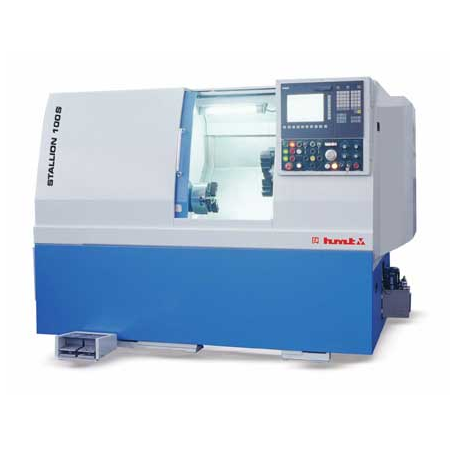

CNC Turning Center STALLION 100 HD/100 SU

Modular turning center for total turning solutions.
Salient Features :
» Facility for cross and longitudinal chip conveyor.
» Single piece monolithic cast iron bed base structure for the highest rigidity and damping.
» 450 Slant bed for easy chip flow and better heat dissipation.
» 8-Station servo tool turret.
» Programmable tailstock with built-in rotating center
» Short main spindle – ensures rigidity.
» Optional C-axis and driven tool turret.
» Direct coupled servomotors
» Highly efficient main drive with less than 20% idle power at maximum speed, thus reducing cost.
» Hardened and ground integral guideways.
» Separate lost lubrication oil collection to prevent mixing of lubrication oil with coolant.

Specifications:

Swing over bed mm 430
Maximum turning dia. mm 250
Maximum turning length mm 460
Bar passage/Spindle bore mm 53
Chuck dia. mm 200
Main drive power (100%) kW 5.5
Speed range rpm 100-3000 (optional 3500 & 4500)
Rapid traverse m/min 18
Tailstock travel mm 120
Positioning accuracy - X ; Y mm 0.008/100 ; 0.012/300
Repeatability - X ; Y mm ± 0.002 ; ± 0.003
Control system Siemens 802D / Fanuc 0i
