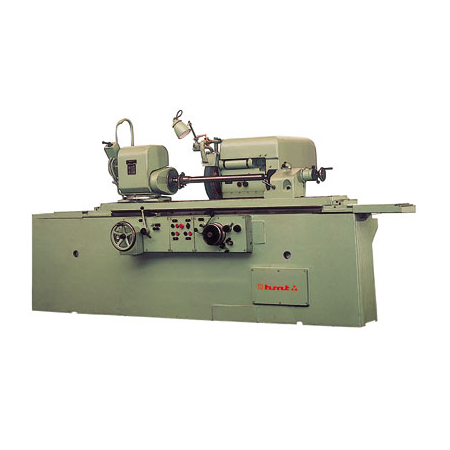

Hydraulic Cylindrical Grinder G17/22

Salient Features :

»	Designed for high rates of stock removal for batch production requiring fine tolerance limits with finest surface finish.
»	Available in universal and production models, having infinitely variable table traverse, with a dwell and automatic infeed at table reversals.
»	The universal models are equipped with swivelling wheel head and built-in provision for internal grinding.
»	A single lever controls table traverse, work rotation, coolant flow and rapid approach of wheel head during production runs.

Specifications :

		G17/800	G17/2000	G22/2000
Center height	mm	175 (225 with G22 set-up)	175 (225 with G22 set-up)	225
Maximum grinding dia.	mm	250	250	250
Swing over bed	mm	350 (450 with G22 set-up	350 (450 with G22 set-up	450
Distance between centers	mm	800	1200	2000
Speed (infinitely variable)	m/min	0.05-5	0.05-5	0.10-4
Grinding wheel dia. (Max. / Min.) U model P model	mm mm	450 / 320 500 / 360	450 / 320 500 / 360	450 / 320 500 / 360
Speed U model P model	rpm rpm	1060 / 1320 960 / 1150	1060 / 1320 960 / 1150	1060 / 1320 960 / 1150
Grinding wheel motor	kW	5.5	5.5	5.5
