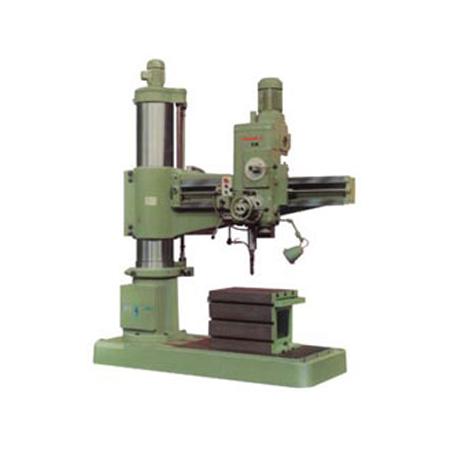

Radial Drilling Machine

Salient Features :

»	Massive and rigid construction.
»	Ergonomically grouped controls for operating convenience.
»	Light centering of spindle.
»	Precise depth release.
»	Electrohydraulic clamping provided for drill head, arm & sleeve.
»	Shock-free engagement of taps through clutch and spindle reverse for withdrawals.
»	Machine with drilling capacity 80 mm / 100 mm also available.

Specifications :
		RM 62	RM 63	RM 65
Drilling Capacity In SteelIn Cast Iron	mm mm	50 60	50 60	50 60	dia 100 (At 60 rpm with 0.5 mm/rev. dia.125 (at 60 rpm with 0.62 mm/rev)
Drilling depth	mm	325	325	325
Tapping In Steel In Cast Iron		M56x2.5 or BSW 1-3/4 M70 or BSW 2-1/2"			dia. 80 dia. 100
Boring In Steel In Cast Iron					dia. 250 dia. 300
Spindle speeds	rpm	12:40-1800			32:10-1545
Spindle feeds	no:mm/rev	6:0.125-1.25			18:0.075-4
Max. drilling radius	mm	1500	1790	2350
Main motor	kW	3.6 / 4.5			20
