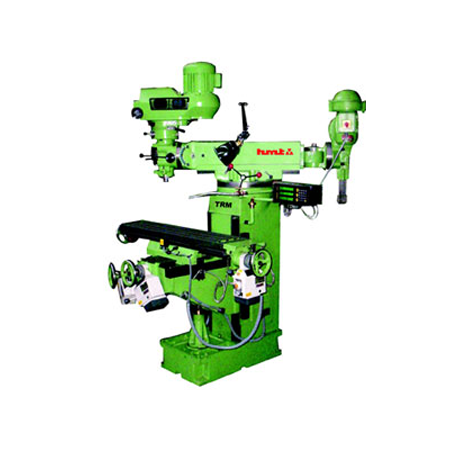

TRM 3V / 5V

Versatile milling machine for milling, drilling and boring operations with precision and speed
Salient Features :
» Versatile ram type milling machine that can perform milling, drilling and boring operations with precision and speed. All these operations can be performed vertically or at an angle at any point on the table surface.
» Can easily be converted in to Horizontal Milling Machine with horizontal milling attachment.
» Solid locking of drilling/milling/boring head in spite of many planes of articulation.
» Heavy milling with speed reduction can utilise the full capacity of the motor.
» Single shot lubrication pump for lubrication to lead screws and guideways in X, Y & Z axes.
» Grease packed drive arrangement ensures maintenance-free enhanced life to the infinitely variable speed milling head.
» Range of accessories.
» Can be effectively used in any small or big workshop and tool rooms.



Specifications :
3V 5V
Table mm 1070x230
Table Clamping Area mm 900x230
Travel-(Manual-X/Y/Z/Ram/Quill) mm 760 /305 / 400 / 305 / 127
Spindle taper ISO 30 (without face mounting facility) ISO 40
Quill feed rates (3 nos.) mm 0.038, 0.076, 0.150
Motor power HP 3 5
Spindle speed Infinitely variable
Speed range
50 c/s 60 c/s		 rpmn rpm

50-3500
60-4200
Swivel of milling head degree 45 either side in X- and Y- planes 45 either side in X-plane
Swivel of ram degree 360
Machine Dimension (LxBxH) mm 1525x1650x1000
Net Weight kg 900 1000
