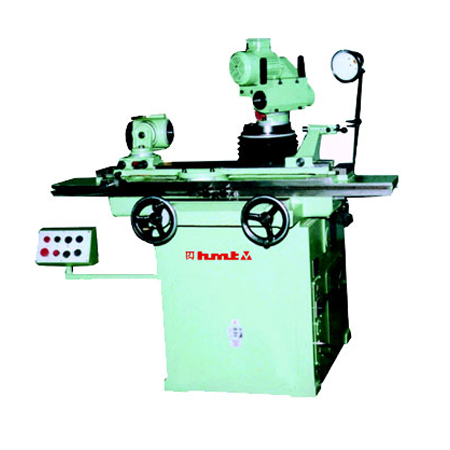

Universal Tool & Cutter Grinding Machine GTC 28TM

New modified Tool & Cutter Grinder ideal for sharpening all types of commonly used cutting tools like milling cutters, hobs, gear cutters, and tools with spiral cutting edges.
Salient Features :
» Rugged box frame structure.
» Preloaded antifriction, cartridge type spindle for wheel head to run in either sense of rotation.
» Wheel spindle can accommodate grinding wheel/interchangeable arbors on both sides.
» Tilting of wheel head in both planes for more versatility.
» Dual control of table for easy operation.
» Higher rigidity and consistent accuracies.
» New improved wheel head on inclined plane allows use of diamond and CBN wheels and higher rated motor power, longer spindle can be used in place of arbors for better accuracies.
» Ideally suited for small workshops, tool rooms, assembly section and training institutes.
Special Executions :
» Fanuc/Siemens CNC system controlled machine.
» Precision radius grinding attachment.
» DRO for all slides.
Specifications :
Centre height mm 130
Swing mm 280
Swing with raising block mm 370
Admit between tailstock centres mm 760
Admit between work head & tailstock centre mm 615
Max. job weight for cylindrical grinding kg 15
Longitudinal travel of table mm 510
Clamping area mm 980x140
Cross traverse mm 250
Tailstock taper MT2
Total power kW 3
