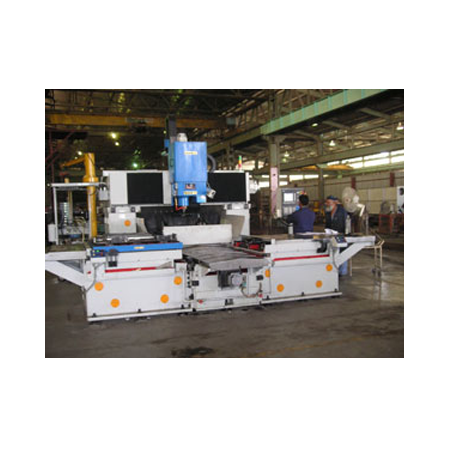

3-Axes CNC Milling Machine

Salient Features :
» Rectangular box construction made of weldment with sufficient ribbing for rigidity.
» Cross beam generously ribbed to take up extreme cutting loads.
» AC Spindle motor for main drive.
» LM Guides.
» Compound slide comprising of Y axis and Z axis integral to the milling head is driven by AC servomotors coupled to the ballscrews through timer belt and pulleys.
» Two pallet bases.
» All bearings lubricated for life.
» Efficient chip disposal system.



Specifications :
Working area mm 1200x1200
T-Slot mm 9x22x125
Max. weight on table kg 2000
Table height from floor level mm 1000
Travel – X / Y / Z mm 1800 / 1200 / 400
Distance between table & spindle face – Max. / Min m/min 600 / 200
Distance between columns mm 1800
Rapid traverse (X,Y & Z) mm/min 10000
Feed rate mm/min 4000
Spindle range rpm 40-1800
Spindle bore ISO 50
Spindle motor. kW 17
Total weight kg 16000
CNC System Siemens / Fanuc
