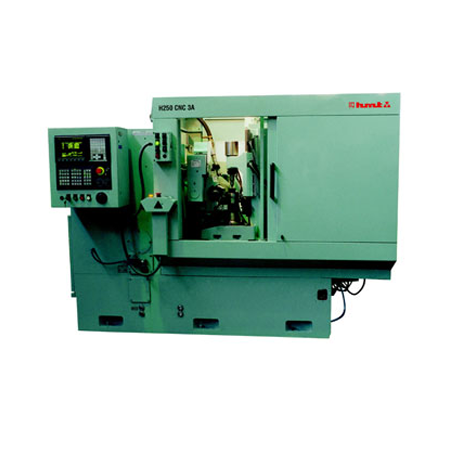

CNC Gear Hobber H250 CNC / 3A

Ideal for production of spur, helical and worm gears, taper gears and crown gears required in automobiles, LMVs, defence trucks, tractors, gear boxes, etc.
Salient Features :
» Gear Hobbing Machine H250/H400 for axial and radial feeds and also for tangential feed.
» Infinitely variable axial and radial feeds.
» Hobbing of taper gears and crown gears through CNC interpolation.
» Multicut facility ensuring easy hobbing of bigger module gears.
» Auto speed, feed and direction change.
» Ideal for hobbing spur and helical gears, worm gears by radial hobbing, taper gears and crown gears required in automobile & auto ancillaries.
» This machine can be offered as :
» Single axis CNC – radial feed (X) axis or
» Two axes CNC – radial and axial feeds (Z and Z axes)
» Three axes CNC – radial and axial feeds and tangential hob shift (X, Z and Y axes)
Specifications :
Rapid Traverses
Radial (X) mm/min 3000
Axial (Z) mm/min 1500
Tangential shifting (Y) mm/min 325
Positioning Accuracy/ Repeatability
X-Axis mm 0.01 / 0.005
Y-Axis mm 0.02 / 0.01
Z-Axis mm 0.02 / 0.01
Control system Siemens/Fanuc
