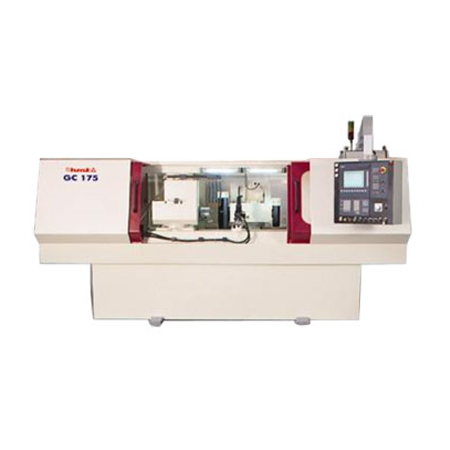

CNC Grinding Center GC 175/225

Unique – Complete Grinding in one set-up
» Hardened and ground wheel spindle mounted on high precision antifriction bearings.
» Work head spindle supported on super precision taper roller bearings.
» 3-Axes CNC Grinder with multi-station hydraulically indexable turret for multi operation facilities – external, internal and face grinding – in single chucking with all the three wheels driven by a common motor.
» Hydraulically operated swing type auto dresser for OD, ID, and face grinding wheels by a common dresser.
» Suitable for automobile components such as gears, bearing cups, bushes and other components used in general engineering and strategic sectors.
» Ideal for flexible production.
» Significant reduction of non-productive time due to single loading/unloading cycle.
» Lower cost with faster throughput, reduced part handling and inprocess inventory.
» User-friendly grinding cycles customised screens (picto programming).
» Higher quality and shortening of cycle time due to one time clamping.
» Pre-streteched directly driven ballscrews with AC digital servomotors for linear axes.
» Auto dressing of all the wheels by a common dresser.
Special Executions :
» High Frequency internal grinding spindles.
» Hydraulic chucking devices.
» MARPOSS inprocess gauging.
» Dynamic wheel balancer.
» Air gap & crash controller.
» Linear scale for axes.
» CBN Grinding facility.
» Fully tooled up solutions.
Specifications :
Center height mm 175/225
Admit between centers mm 250/450/750
Grinding wheel power kW 5.5 / 7.5 / 11
Cutting speed m/sec 45 / 60
Work spindle (infinitely variable) rpm 10-1000
Rapid traverse m/min 15
Input reduction mm 0.0001
