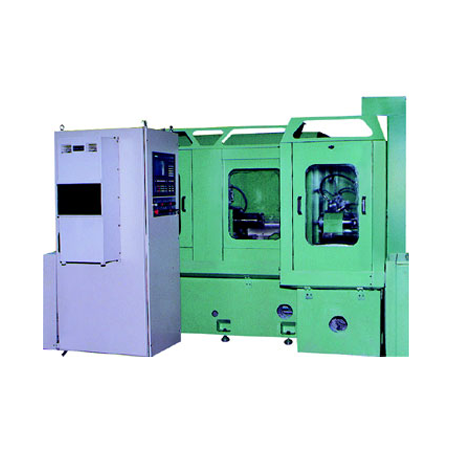

CNC Internal & Face Grinding Machine GIN 16T / 2A

Salient Features :
» Ideally suited for components requiring both internal and face grinding operations in single chucking.
» Both spindles can also perform operations such as straight, tapered and profile grinding.
» Oscillation of work head slide (Z) instead of wheel head for internal grinding.
» Two internal grinding heads mounted on a slide (X) at right angle to the work head slide
» Wheel peripheral velocity up to 45 m/sec with high frequency internal grinding spindles.
» High grade alloy steel work spindle mounted on precision preloaded antifriction bearings for optimum rigidity and running accuracy of less than one micron.
» Wide range of work clamping devices, either manual or power operated to suit customer components.
Specifications :
Min. / Max. bore grinding capacity mm 6 / 160
Max. bore grinding depth mm 150
Max. length of job mm 400
Max. swing over table mm 450
Work spindle nose A2"-5
Work head swivel deg 150
Max. feed rate - X / Z axes m/min 5 / 6
Min. programmable increment of slides on diameter mm 0.0005
Roundness on test piece Micron < 1
Control system Siemens/Fanuc
