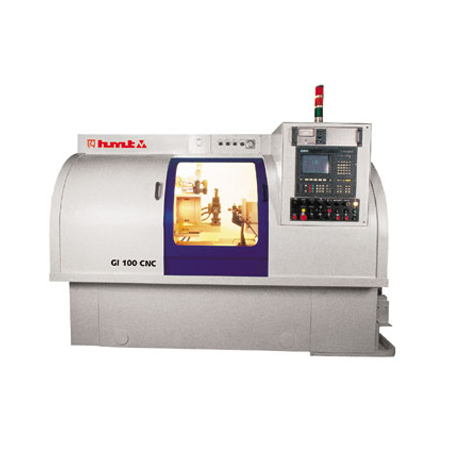

CNC Internal Grinding Machine SMART IG 150 / GI 100 CNC

Salient Features :

Two axes CNC controlled machine.

Machine mounted electrical cabinet and control panel for plug-in & start.

TPM friendly.

Workhead, spindle supported on precision Gammet taper roller bearings for high running accuracies and rigidity.

Infinitely variable speed for work head (SMART series only).

Directly driven ball screws with AC servomotors for both the axes.

Hydraulically operated swing type grinding wheel dresser.

Auto wheel dressing compensation.

Adjustable and programmable dressing feeds.

Standard Modular Configuration

»	Machine with single grinding spindle.
»	Machine with twin grinding spindle and linear indexing.
»	Machine with 4-station turret holding 4 HF spindles to perform multi operations in a single set-up

Specifications :

		SMART IG 150(2S)	GI 100 CNC
Max. grinding bore	mm	150	100
Min. grinding bore with belt driven spindle	mm	10	10
Min. grinding bore with HF spindle	mm	4	4
Max. grinding depth	mm	150	100
Max. longitudinal travel (Z)	mm	400	360
Rapid feed rate (Z)	m/min	15	10
Max. travel of infeed slide (X)	mm	250	40
Rapid feed rate (X)	m/min	10	5
Internal grinding spindle - Belt / HF	rpm	35000 / 150000
Grinding wheel motor - Belt / HF	kW	4 / 1.5 to 24
Control system		Siemens/Fanuc
