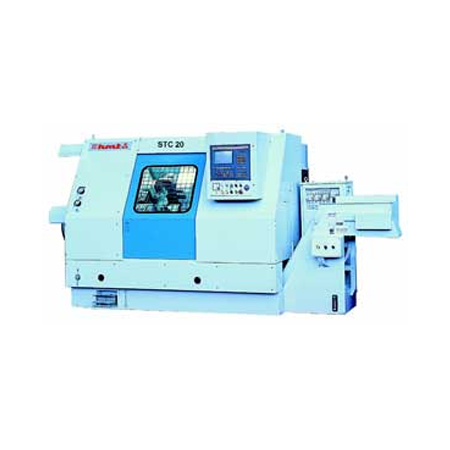

CNC Slant Bed Turning Center STC 20

Designed for high productivity and accuracy, with high traverse rates and reduced non-cutting times
» 45° Inclined slant rigid bed.
» 2.5° Indexing or C-axis with driven tools on turret.
» Hardened and ground rectangular guideways for saddle
» Main spindle supported on super precision angular contact bearings.
» Large precision coupling ensures accuracy of indexing on high rigidity tool turret.

Specifications:

Swing over bed mm 420
Maximum turning dia. mm 250
Maximum turning length mm 600
Chuck dia. mm 250
Bar passage/Spindle bore mm 53
Spindle power (100%) kW 7.5
Speed range rpm 100-4000
Rapid traverse l m/min 15
Tailstock quill travel mm 120
Control system Siemens / Fanuc
