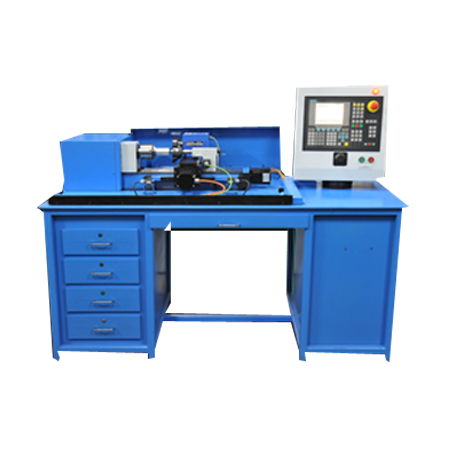

CNC Trainer Lathe

Salient Features :

»	Compact table top model, most ideal for training institutes.
»	Machine with higher power suitable for steel cutting.
»	Stepless AC drive for headstock.
»	Hardened and ground spindle runs in precision antifriction bearings.
»	Conventional FANUC/SIEMENS CNC system controlled machine best suited to technical educational institutions and small shops.
»	Recirculating Ball screw and nut arrangement for longitudinal and cross axis.

CNC SYSTEM :

»	FANUC/SIEMENS based CNC system with increment and continous JOG .
»	Monocrome LCD screen.
»	Stepless AC drive.
»	Axis homing.
»	Number of axis-2.
»	Incremental and continous JOG.
»	MDI/SINGLE BLOCK/Auto execution.
»	Software limits, feed hold feed override 0-120%.
»	Linear and circular interpolation.
»	Dwell time.
»	Thread cutting.
»	Zero offset.
»	Inch/Metric/Absolute/Incremental programming.
»	Feed per minute and feed per revolution.
»	Turning and Threading cycles.
»	Block skip, G & M codes as per ISO.
»	Backlash compensation.
»	Bi-directional automatic 8-station tool turret with provision for holding 4 external and 4 internal tools.
»	Slide moves on antifriction PTFE lining.
»	Alarm messages.

STANDARD ACCESSORIES :

»	One set of hand tools for normal operation.
»	One set of instruction-cum-programming manual.
»	Dual core (Blur and Off-white).
»	Panel AC.
»	MPG.

Specifications :

Height of centres.	mm	100
Distance between centres	mm	310
Swing over bed	mm	150
Swing over cross slide	mm	75
Travel of cross slide	mm	75
Max. turning diameter	mm	45
Max. turning length	mm	150
Longitudinal transverse	mm	180
Headstock
Hole through spindle	mm	16
Spindle taper		MT 2
Type of drive		AC Servomotor
Speed range (stepless)	rpm	50-3000
Motor power	kW	0.75
Tailstock
Sleeve diameter	mm	22
Stroke	mm	35
Taper		MT1
Feed
Type of drive for both axis		AC Servomotor
Resolution	mm	0.001
Rapid transverse rate	mm/min	700
Programmable feed rate (infinitely variable)	mm/min	1-700
CNS System
No.of axis		2
Type		SIEMENS 802C Base line
General
Electricals		415± 10%,three phase 50Hz± 3%,AC Supply
Weight of machine (approx)	kg	250
Dimensions (LxWxH)		1600x800x1370
