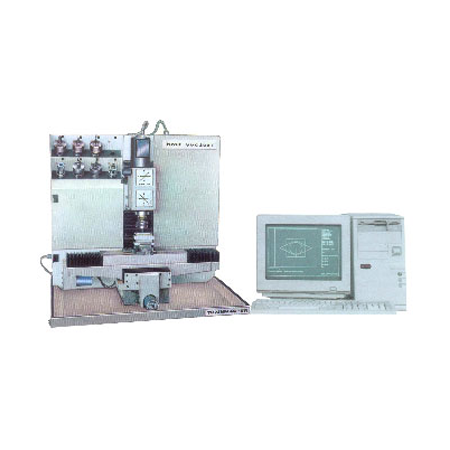

CNC Trainmaster Machining Center VMC 200T PC

Salient Features :

»	An economical and user friendly PC based system to meet Training requirements of all Training Centres, Technical and Educational Institutions in CNC machine tools operation & programming.
»	Provides a comprehensive range of CNC functions for both Vertical and Horizontal modes of operation, with a CRT monitor and many more advanced features.
»	PC based CNC system
»	Compact table top model, most ideal for training institutes.
»	Stepless DC drive with RPM and load indication for spindle.
»	Hardened and ground spindle runs in Precision antifriction bearings.
»	Economical CNC system best suited to educational institutions.
»	Recirculating Ball screw and Nut arrangement for all axis
»	Machine lamp

Specifications :

Table size	mm	420 x 125
Max.job weight	kg	20
X-Axes (long. slide)	mm	200
Y-Axes (cross. Slide)	mm	125
Z-Axes (vertical Slide)	mm	200
Type of drive		Stepper drive
Resolution	mm	0.01
Rapid traverse rate	mm/min	700
Feed Rate	mm/min	2 - 550
Spindle taper		ISO-30
Type of drive		DC servo motor
Speed range (stepless)	rpm	200 - 2000
Power	kw	0.44
CNC System		3- Axis continuos path PC based CNC system
Tool change		Manual with CNC prompting
No. of tools	Nos.	8
