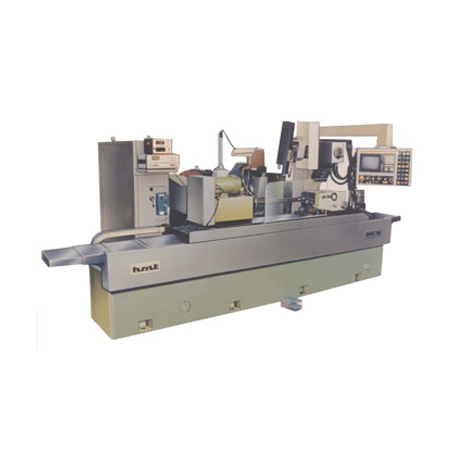

CNC Universal Grinding Machine GNC 15

3-Axes CNC Universal Grinder ideally suited for external grinding, shoulder and internal grinding operations on medium/small size components.
Salient Features :
» 3-Axes CNC Universal Grinder ideally suited for external grinding, shoulder and internal grinding on medium/small size components.
» Hydrodynamic bearings for wheel spindle.
» Infinitely variable AC work head drive.
» Belt driven spindle for internal grinding.
» Tailstock and work head mounted dressers for wheel dressing.
» Rotary encoder feedback for X, Z, and B axes.
» Hardened and ground guideways for X-axis with linear recirculating roller bearings.
» Turcite liners for table.
» Guideway protection by telescopic covers.
Specifications :
Center height mm 150
Distance between centers mm 600
Swing over table mm 290
GCNC Rotary Indexing Table dia. mm 600
Rapid traverse (Z) mm/min 12000
Stroke mm 960
Grinding dia. - Min / Max. (ext.) mm 20 / 200
Max. bore grinding capacity mm 150
Max. grinding depth mm 150
Maximum weight of job
Between centers
Chuck job including chuck weight		 kgf
kgf		 200
50
Control System Fanuc/Siemens
