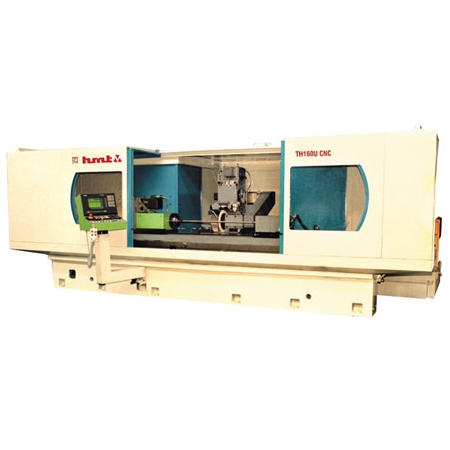

CNC Universal Thread & Worm Grinding Machine TH 160 / 1000

Salient Features :

»	Seven-axes CNC Worm & Thread Grinding Machine designed for efficient and high accuracy grinding of single or multi-start worms and threads.
»	Short changeover and short idle times.
»	Two-axis CNC dressing attachment mounted on wheel head with the help of rotary diamond disc facilitates dressing of grinding wheel to nearly any kind of profile.
»	Interpolation between C-axis and Z-axis for the generation of worm and threads eliminates the need for complex kinematics thereby reducing maintenance.
»	Micro taper correction facility for tailstock.
»	Centralised lubrication for guideways and ball nuts.
»	Auto wheel dressing compensation.

Specifications :

Max. grinding length	mm	1500
Max. distance between centers.	mm	1600
Max. workpiece dia.	mm	320
Max. helix angle	deg	+_ 40 (Degrees)
Work spindle bore	mm	45
Table rapid traverse	m/min	45
Max. profile size ground		10 modules
Control system		Siemens
