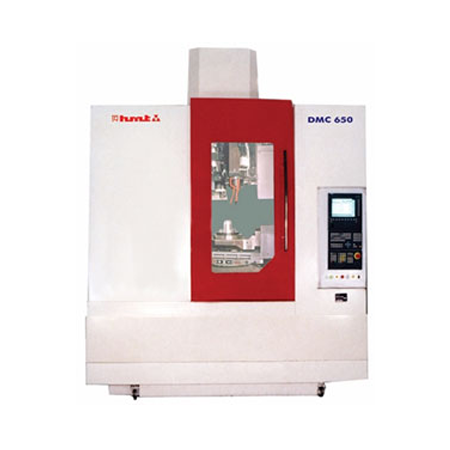

Die & Mould Machining Center DMC 650

Salient Features :

»	High speed, high power integral spindle
»	Cartridge type spindle arrangement mounted on the ram for easy dismantling during servicing
»	Automatic spindle temperature cooler
»	LM guides for X & Y axes
»	Ram structure for Z-axis with enveloping guideway design with large contact area to ensure good cutting performance throughout the stroke
»	Optional rotary table with tilting axis for a full-fledged five-axes machining
»	Total clamping through disc springs and declamping through pneumatic
»	Cam operated armless 24 tools ATC
»	Minimal hydraulics
»	Counter balancer to ensure zero drop during power failures

Specifications :

Clamping surface	mm	850x450
Max. load on table	kg	400
Spindle speed range	rpm	100-10000 (opt. 15000)
Spindle nose taper		BT 40
Travel - X / Y / Z	mm	650 / 450 / 450
Feed rate	mm/min	1-24000
Rapid rate - X / Y / Z	mm/min	30 / 30 / 24
Machining capacity Face milling (Steel 55065 kg/mm2) Drilling (Steel/Cast Iron) Tapping (Steel 55-65 kg/mm2)	cc/min cc/min	224 58 M30
Accuracies (VDI/DGQ 3441) Positioning Repeatability	mm mm	0.008 0.004
CNC System		SINUMERIK 840D
Total weight	kg	5500
Dimension (lxbxh)	mm	3200x3000x3000
Rotary Table Tilting axis (A) Rotary axis (C ) Speed range Indexing accuracy Repeatability	deg deg rpm arc secarc sec	± 900 Continuous 0-10 105
