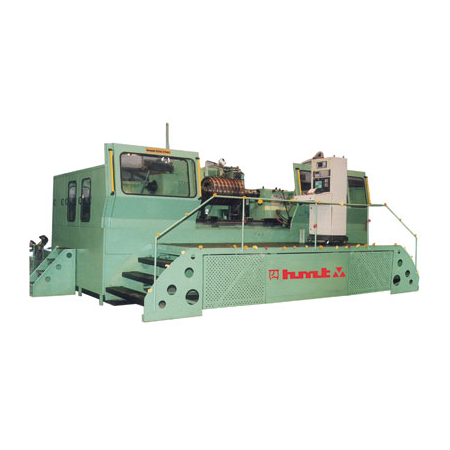

3-Axes CNC Heavy Duty Grinder ideally suited for carrying out external grinding, shoulder grinding and internal grinding operations.
»
The unique feature of this grinding machine is traversing the wheel head mounted on rotary table along the length of component instead of conventional method of moving table.
»
Hydrodynamic bearings for wheel spindle.
»
Infinitely variable AC servomotor for work spindle.
»
Belt driven spindle for internal grinding (optional).
»
Tailstock sleeve on preloaded antifriction guide.
»
Tailstock mounted dresser for dressing diameter and shoulder.
»
Hardened and ground guideways for X-axis with linear re-circulation roller bearings.
»
Guideway protection through telescopic type covers.
»
Centralized lubrication system for guideways and ball nuts.
»
Continuous re-circulating lubrication system for wheel spindle.
»
Two circuit refrigeration type of cooler.
»
Rotary encoder feed back for X, Z, and B axes.
»
Ideally suited for marine, aerospace and power transmission components.
