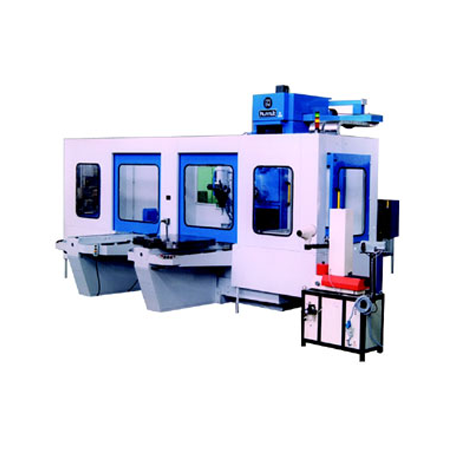

Horizontal Machining Center HMC 800/1000/1250/1500 /HMC 320/400, HSM400/500, HMC 500M HMC 630

Horizontal Machining Center HMC 800/1000/1250/1500 /HMC 320/400, HSM400/500, HMC 500M HMC 630

Salient Features :
» Fixed column type machining center.
» All axes with LM guideways
» High power for large metal removal rate, power adequate for extensive milling with latest carbide cutters.
» Absolute encoders for all axes.
» Encoder for faster spindle orientation.
» Spindle supported on a set of four high precision pre-loaded angular contact ball bearings and is dynamically balanced.
» Immediate spindle start-up eliminate 4s lost machining time.
» All axes drive by maintenance-free AC servomotors with excellent response characteristics for accurate contouring.
» 12-Tool magazine.
» Designed for high accuracies.
Specifications :
Table size mm 700x460
Traverses X, Y & Z axes mm 560 x 450 x 450
Rapid rate m/min 12 (standard), 20/32 (optional)
Positioning accuracy mm ± 0.005
Repeatability mm ± 0.003
Spindle taper BT-40/ISO 40
Spindle speed rpm 60-6000, 60-8000
Spindle power kW 5.7 / 7.5
ATC Capacity 12
Max. tool weight kg 6
Max. tool dia. mm 80, 125 (alternate pocket empty)
Tool change time sec 7
CNC System Fanuc/Siemens
