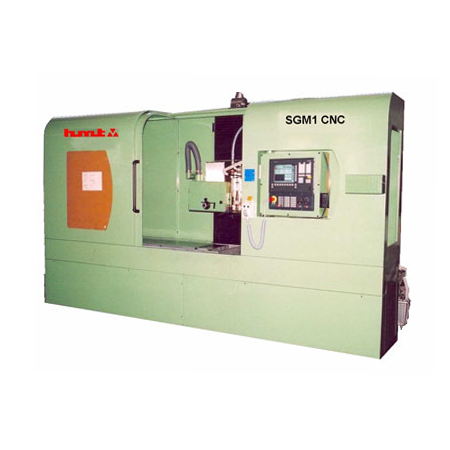

Horizontal Spindle Reciprocating Table CNC Surface Grinding Machine SGM

Salient Features :

»	Box type construction with ample ribbing for high rigidity.
»	Three linear axes (X, Y, and Z). Linear motion antifriction guideways for Y and Z axis. Turcite coated Vee and flat guideways for X axis.
»	Axes drive through precision ballscrew and nut driven by AC servomotors.
»	Wheel spindle mounted on high precision bearing lubricated for life.
»	Incremental rotary encoder for position feedback of X & Z axis.
»	Linear encoder for position feedback of Y axis.
»	Three axes CNC system.
»	Continuous lubrication of table with independent power pack.
»	Centralised lubrication for Y & Z axes guideways and ball nuts.
»	Ideally suited for flat and profile grinding with suitable dressing attachments & fixtures.

Specifications :

		SGM1	SGM2
Table clamping area (LxW)	mm	1500x320	600x400
Grinding range (LxW)	mm	1250x320	1250x400
Distance from table to spindle center	mm	Min 125 Max 600	Min 125 Max 600
Stroke - X / Y / Z	mm	1450/425/480	1450/800/480
Rapid traverse - X / Y / Z	m/min	25/1/3.5	30/2/4
Continuous feed rate - Z	m/min	Programmable	Programmable
Minimum programmable increment	mm	0.0001	0.0001
Grinding wheel spindle motor	kW	8.5 at S6 60%	8.5 at S6 60%
Grinding wheel - Dia x Bore x Width	mm	400x127x80	400x127x80
Grinding wheel speed (inf. Variable)	rpm	1450-2450	1450-2450
Control system		Siemens/Fanuc	Siemens/Fanuc
