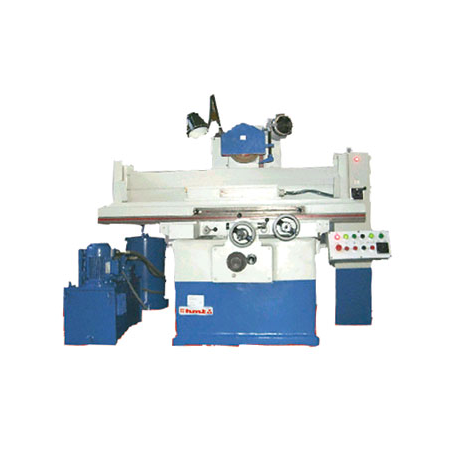

Horizontal Spindle Surface Grinding Machine PSG 200

Horizontal Spindle Surface Grinding Machine PSG 200

Salient Features :
» Bed made of high tensile strength cast iron, heavily ribbed for better vibration damping and shock absorption.
» Precision hardened and ground antifriction roller guideways for saddle, table and vertical column.
» Higher powered wheel head.
» Automatic infeed at table reversal.
» Infinitely variable table speed.
» Ideal for components requiring an extremely accurate and highly finished flat surfaces, tool room applications. High rates of output can be obtained especially in those cases where the components can be loaded/clamped in batches on the table or on a magnetic chuck.
Specifications :
Table clamping area mm 600x200
Max. work height mm 330
Max. job weight on table kg 180
Size of magnetic chuck mm 600x200
Max. height of spindle centre above table mm 460
Grinding wheel size (ODxWxID) mm 250x20x76.2
Wheel speed rpm 3220, 2440
Grinding wheel motor kW 2.2
Max. Traverse - Long / Cross / Vertical mm 630 / 230 / 360
